Product Information

Material Stainless Steel 316
Type 2-Way Flow • Screw End • Lever Handle
2-Piece Body • Full Port • Full Bore
1-Piece Body • Reduced Port • Reduced Bore
Pressure 1000 psi WOG
Size 1/4  BSP 2 1/2  BSP
  1/4  NPT 2 1/2  NPT

Product Standards

Material Stainless Steel 316
ASTM A351 CF8M
Pipe Thread BSP
BS EN 10226-1
Pipe Thread NPT
ASME B1.20.1

BRAND WESS
ORIGIN TAIWAN

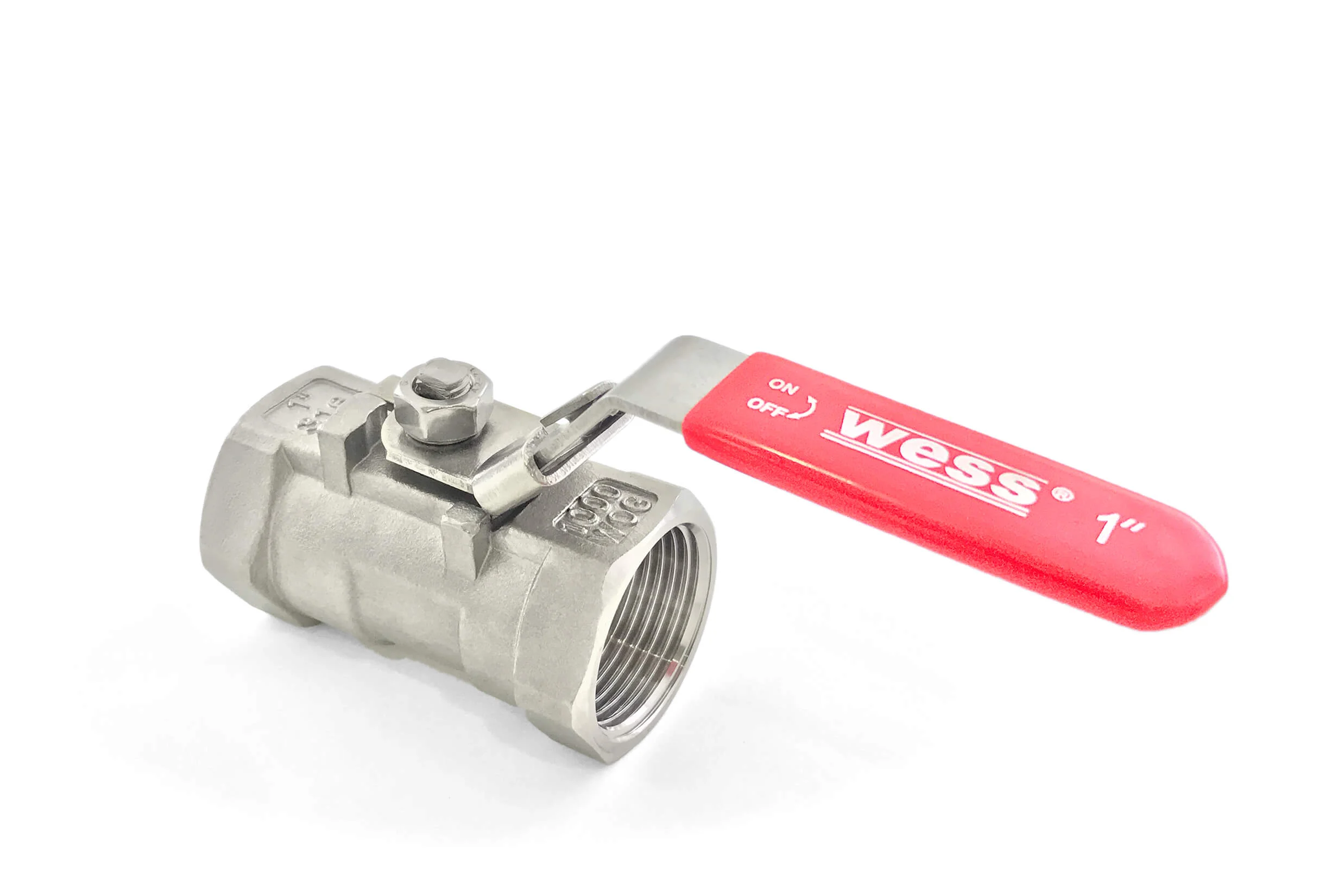

Product Gallery

References

Material

  • ASTM A351 / A351M - 16
    Standard Specification for Castings, Austenitic, for Pressure-Containing Parts
    Website

Pipe Thread - BSP

  • BS EN 10226-1:2004
    Pipe threads where pressure tight joints are made on the threads. Taper external threads and parallel internal threads. Dimensions, tolerances and designation
    Website

Pipe Thread - NPT

  • ASME B1.20.1 - 2013
    Pipe Threads, General Purpose, Inch
    Website
